M240128A2-B5

Product Categories

Shenzhen Marvel Electronics Co., Limited

Contact Now

Contact Now

Display type: 240 * 128 dots

LCD type: STN(Blue), transmissive/negative

Drive Method:1/128duty, 1/12bias, VOP 18.0V, VDD 5.0V

Backlight: White(side), VDD 5.0V, Idd 200mA

Drive IC: T6963(LQFP)

Viewing angle: 6 O’clock

Operating temperature: -20 to 70℃

Storage temperature: -30 to 80℃

Connection: ZEBRA

Outline dimension: 144.00mm(L)*104.00mm(W)*13.20mm(H)

Viewing area: 114.00mm(L)*64.00mm(W)

Active area: 107.95mm(L)*57.55mm(W)

Dots size: 0.40mm(L)*0.40mm(W)

Dots pitch: 0.45mm(L)*0.45mm(W)

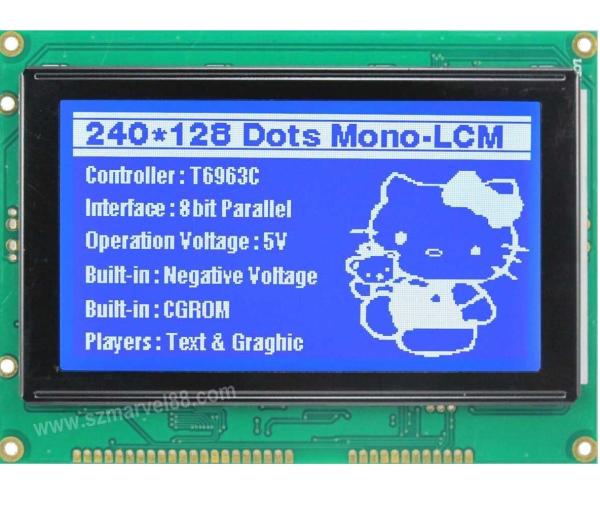

M240128A2-B5 Images
